EXPEDITED TEMPORAL DEPLOYMENT METHOD

YOU MUST HAVE THE MACHINES STILL RUNNING FROM THE PREVIOUS TUTORIAL TO COMPLETE THIS TUTORIAL SUCCESSFULLY

On your build machine, you need to now make hourly periodicity temporal backups of your application sourcecode and your application database.

To generate your temporal backups, you have to run two commands on your build machine. At the command prompt of your build machine cd into the helperscripts directory of your agile deployment toolkit installation. In my case it is like this:

cd /home/wintersys-projects/adt-build-machine-scripts/helperscripts

Then perform a temporal database backup

/bin/sh PerformDatabaseBackup.sh

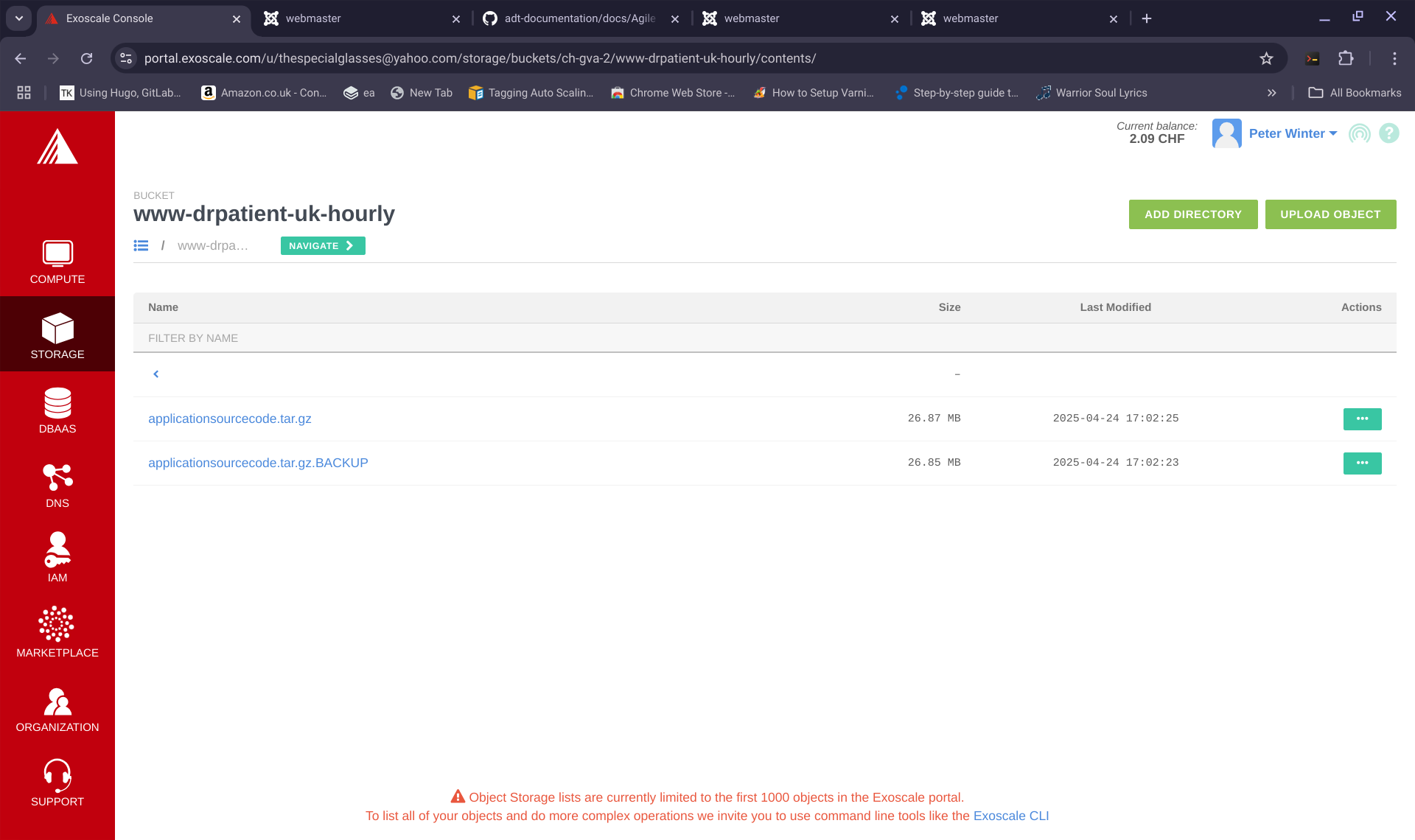

Answering all of the questions and picking a periodicity, for example, HOURLY in your template. Check in your datastore for a database temporal backup which should look similar to this picture with an appropriate timestamp for you.

Then perform a temporal website sourcecode backup

/bin/sh PerformWebsiteBackup.sh

Making sure you pick the same periodicity as for the temporal database backup, for example, "HOURLY"

What we are then interested in is template 3 which is at:

/home/wintersys-projects/adt-build-machine-scripts/templatedconfigurations/templates/exoscale/exoscale3.tmpl

I can extract the values for the following variables from template 1 or template 2 which I used in the previous tutorials in the series and set them in template 3, replace these with your own live values:

export S3_ACCESS_KEY="EXO0a940f1387e31e370e91dc44" #MANDATORY
export S3_SECRET_KEY="a3GFn-40ZqEpvEp3bibjOOXchM-IX2lw0JcokCFW7KM" #MANDATORY
export ACCESS_KEY="EXO0a940f1387e31e370e91dc44" #MANDATORY
export SECRET_KEY="a3GFn-40ZqEpvEp3bibjOOXchM-IX2lw0JcokCFW7KM" #MANDATORY
export DNS_USERNAME="[email protected]"  #MANDATORY
export DNS_SECURITY_KEY="EXO0a940f1387e31e370e91dc44:a3GFn-40ZqEpvEp3bibjOOXchM-IX2lw0JcokCFW7KM"   #MANDATORY - This is your access key and your secret key, written: DNS_SECURITY_KEY="${ACCESS_KEY}:${SECRET_KEY}"
export CLOUDHOST_ACCOUNT_ID="[email protected]" #MANDATORY
export WEBSITE_DISPLAY_NAME="Test Social Network" #MANDATORY
export WEBSITE_NAME="drpatient" #MANDATORY - This is the exact value of the core of your WEBSITE_URL, for example, www.nuocial.org.uk would be nuocial
export WEBSITE_URL="www.drpatient.com"  #MANDATORY
export APPLICATION_REPOSITORY_OWNER="adt-apps" #MANDATORY
export APPLICATION_REPOSITORY_USERNAME="adt-apps" #MANDATORY
export APPLICATION_REPOSITORY_PASSWORD="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k4" #MANDATORY
export APPLICATION_REPOSITORY_TOKEN="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k4" #MANDATORY

What I then do is adjust

/home/wintersys-projects/adt-build-machine-scripts/templatedconfigurations/templates/exoscale/exoscale3.tmpl

to contain these values instead of its defaults.

I then need to set the template to use the temporal backups that I have generated and I do that by setting these values in template3:

export APPLICATION="joomla" #MANDATORY (joomla or wordpress or drupal or moodle)
export APPLICATION_IDENTIFIER="1" #MANDATORY
export BUILD_CHOICE="2" #MANDATORY 2=hourly, 3=daily, 4=weekly, 5=monthly, 6=bimonthly
export BUILD_ARCHIVE_CHOICE="hourly" #MANDATORY hourly, daily, weekly, monthly, bimonthly
export PERSIST_ASSETS_TO_CLOUD="1" #MANDATORY This should only be 0 if your application has a very small number of assets
export DIRECTORIES_TO_MOUNT="images" #MANDATORY - this will define which directories in your webroot will be mounted from S3, if PERSIST_ASSETS_TO_CLOUD=1

Shutdown any webservers that you have running from tutorial 2 and you are then ready to perform a temporal build, as shown below:

If your template is configured correctly you can now run the build process selecting the appropriate template and cloudhost (exoscale and template 3 in other words). On your build machine, do as follows:

cd ${BUILD_HOME}
./ExpeditedAgileDeploymentToolkit.sh

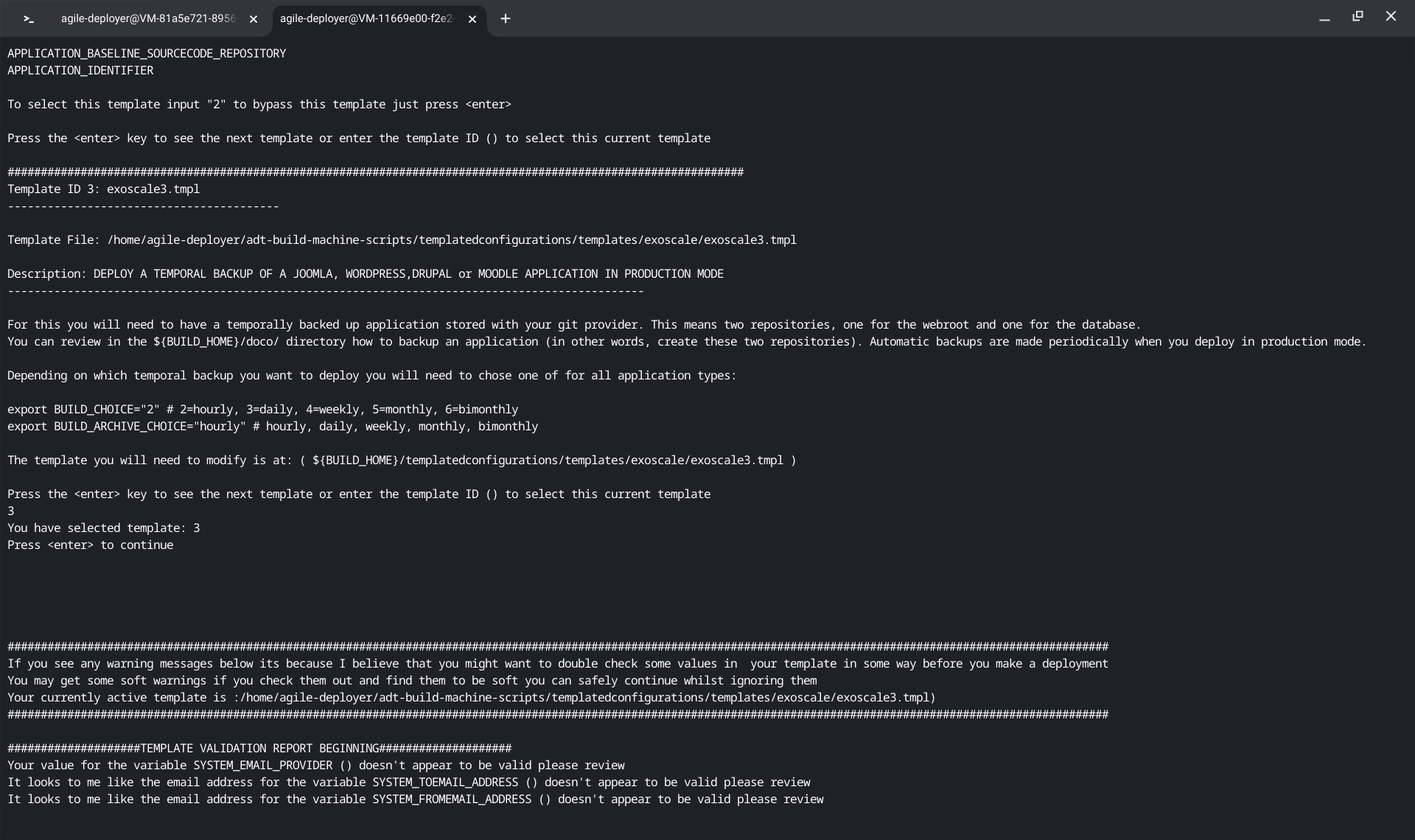

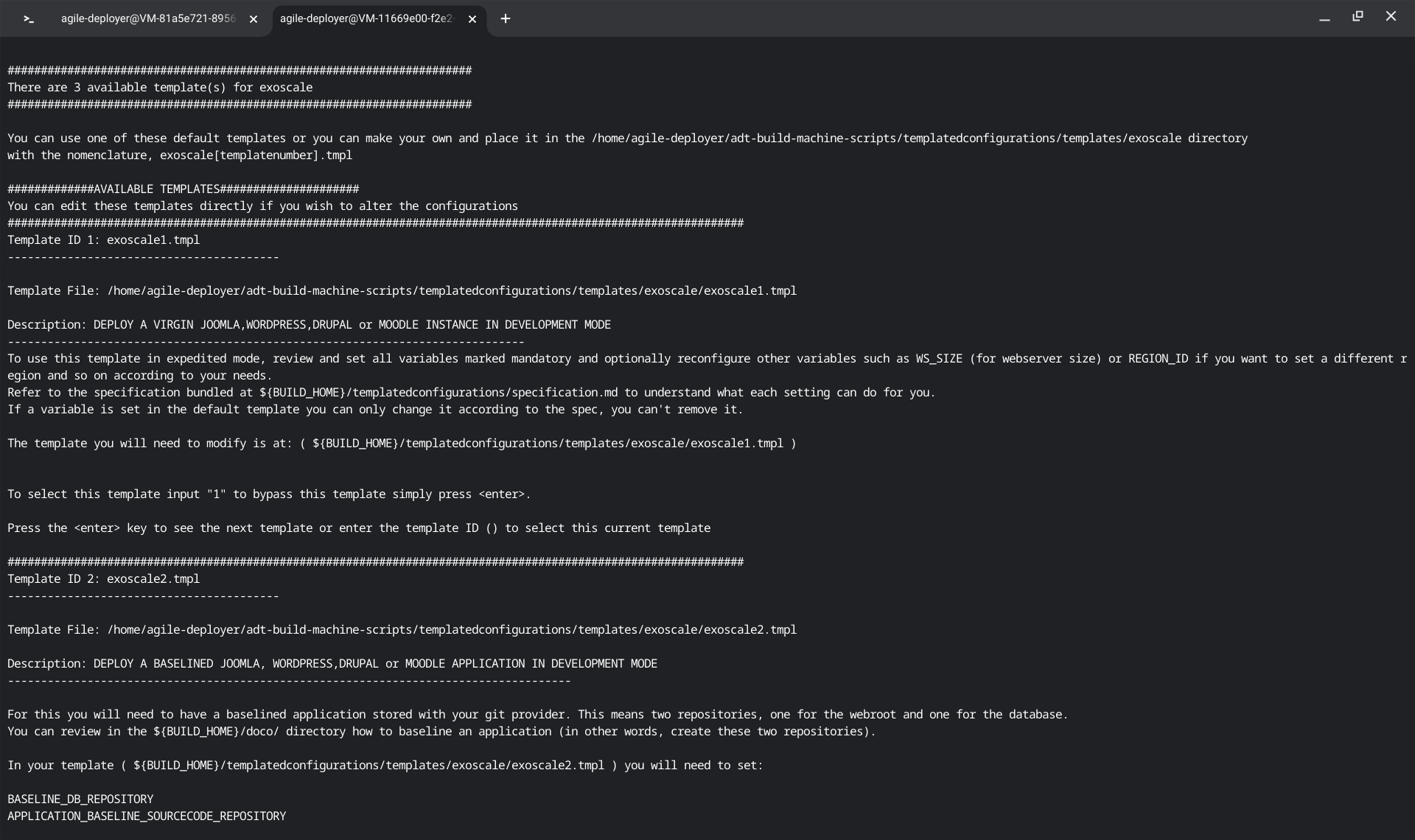

and answer any questions and select template 3 and have a bit of patience whilst the build runs.

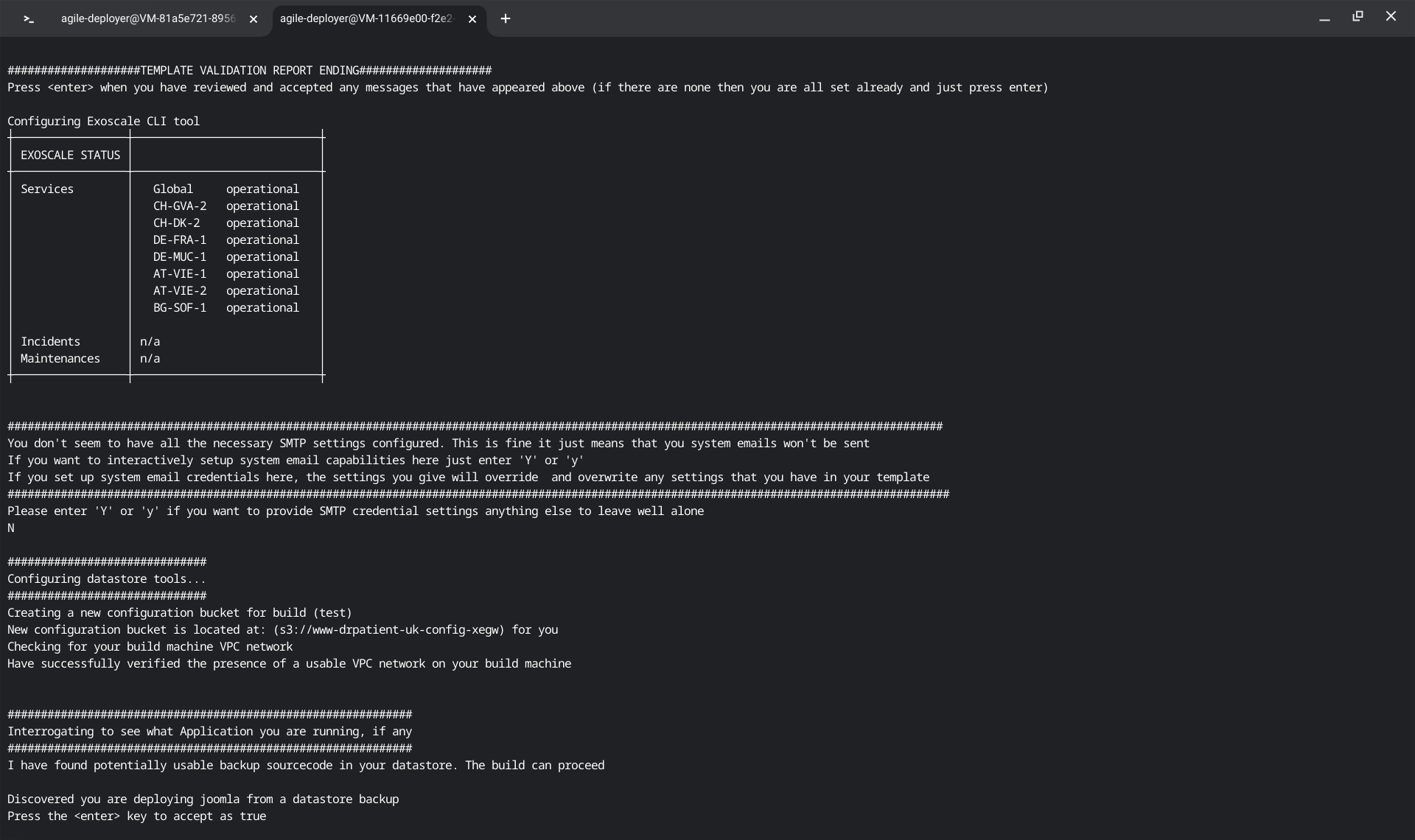

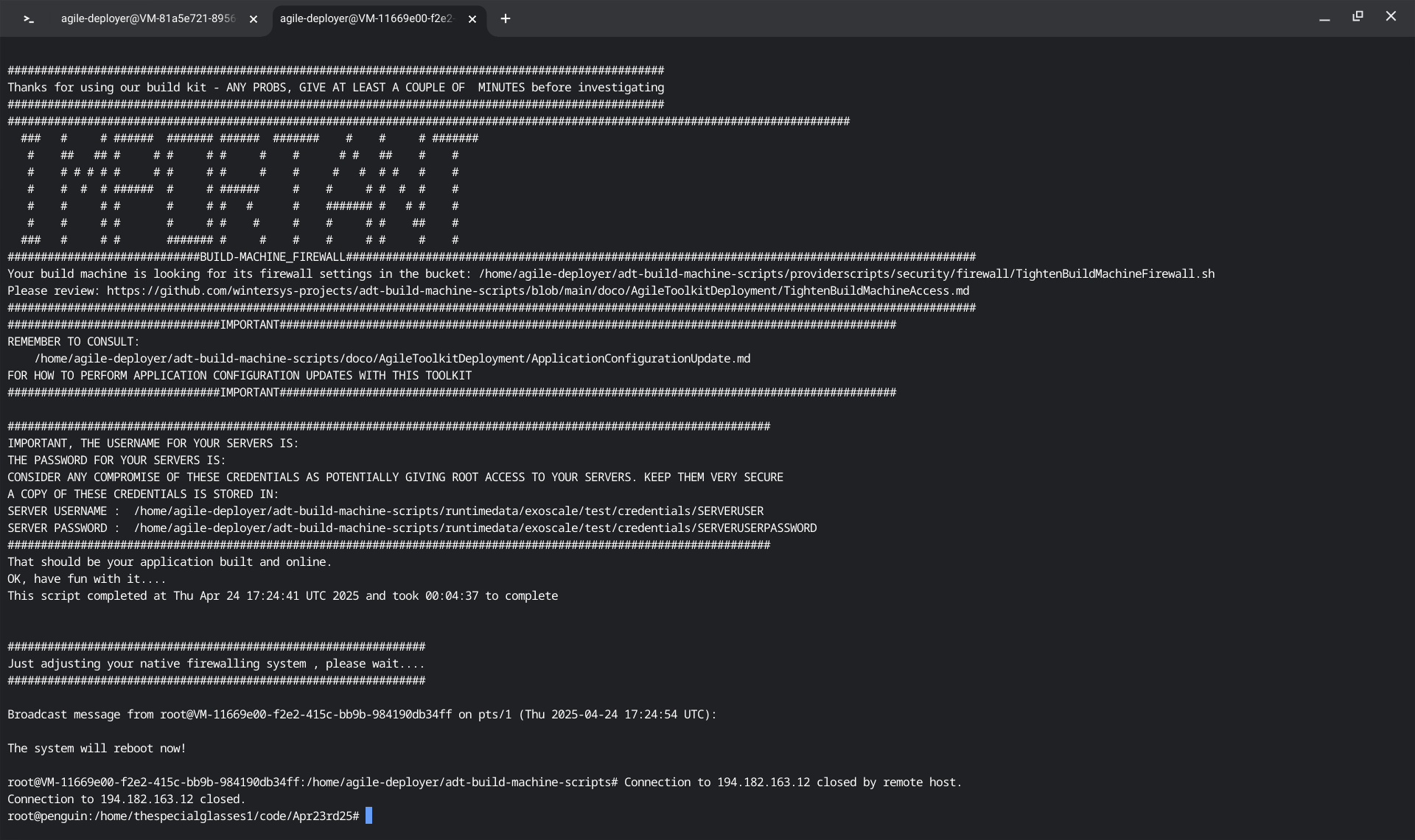

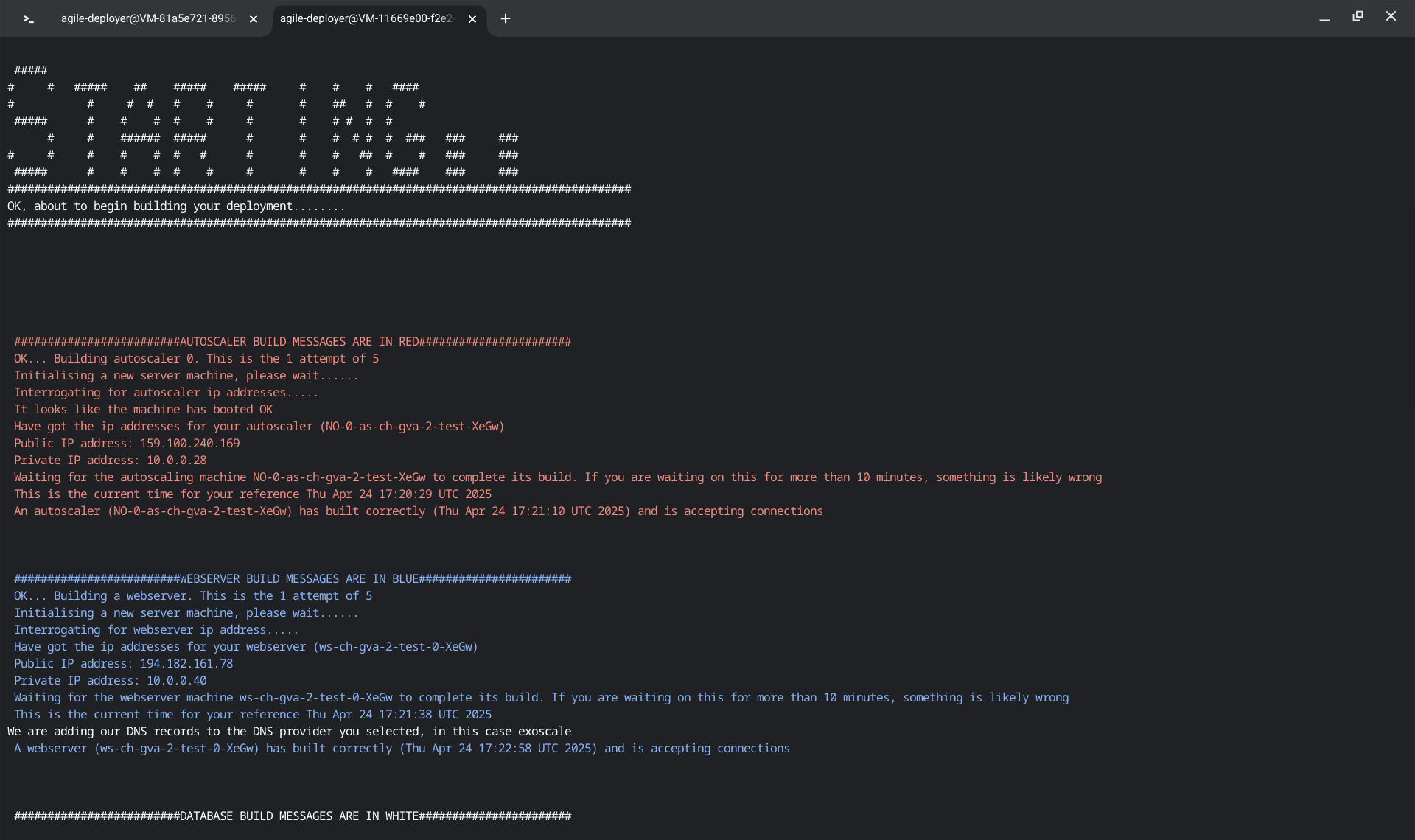

When I ran a temporal build process, I saw the following output from the ADT

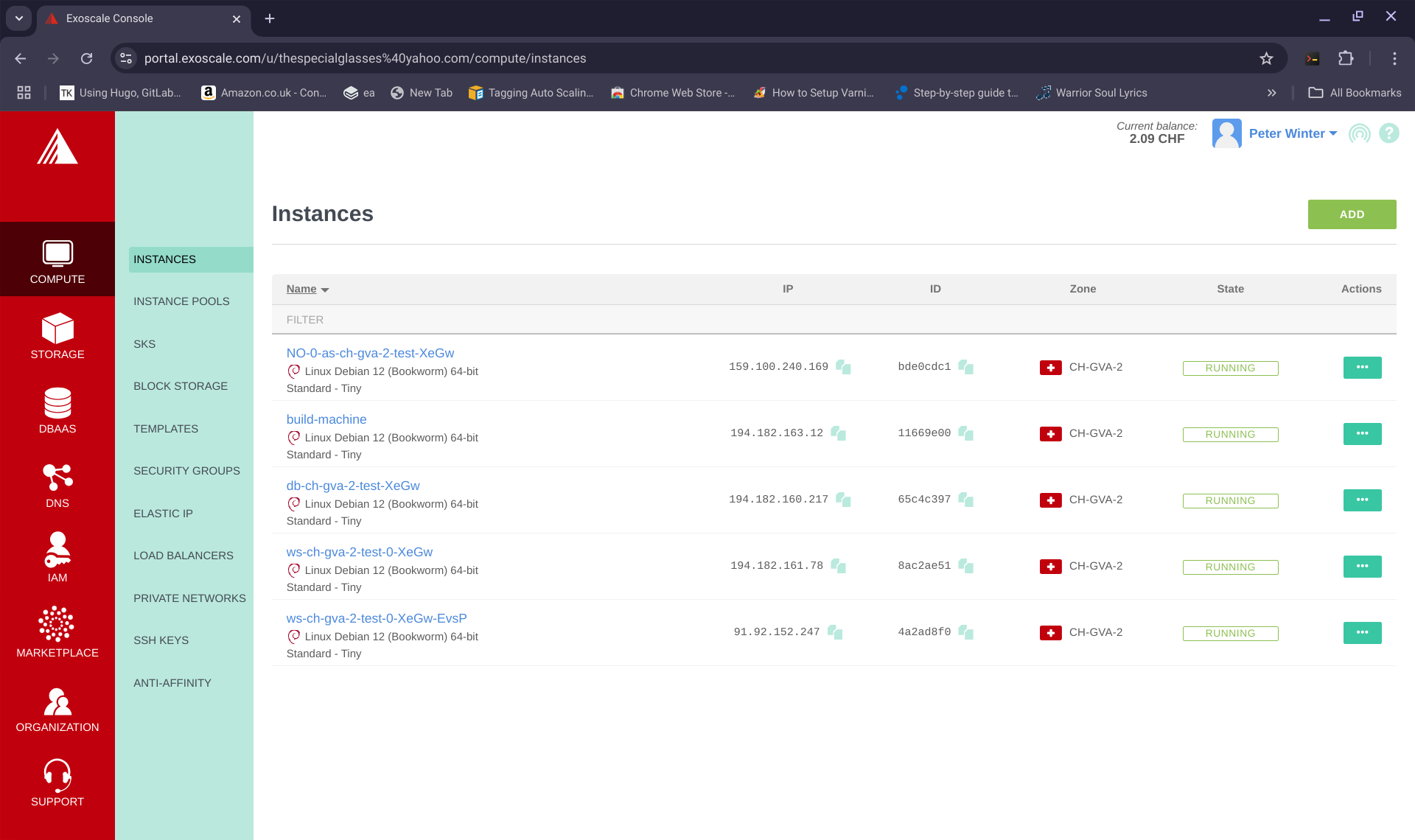

Notice that there are two webservers and an autoscaler running because this is a temporal build Notice that an images or assets bucket has been created in the datastore and is mounted within the webroot of the application as /var/www/html/images And this is what my community builder example looks like deployed from a temporal backup
